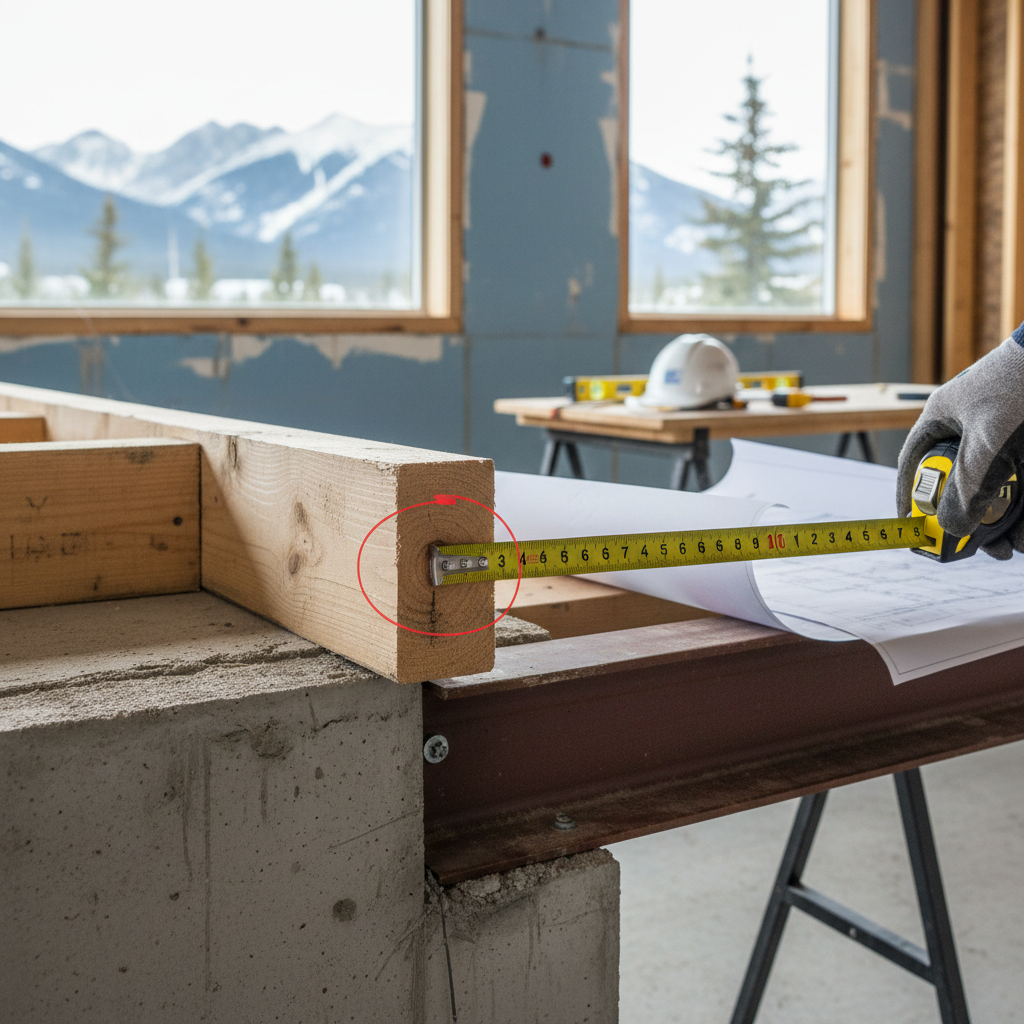

A minimum end bearing length of 38 mm for floor joists, as specified in NBC 9.23.9.1.(1), forms a cornerstone of structural integrity for wood-frame multifamily construction in Alberta. Despite the apparent simplicity of this figure, its practical implications ripple through engineering calculations, on-site detailing, inspection regimes, and the durability of finished assemblies. This threshold, established through decades of building science research and field experience, is an essential bulwark against a suite of potential defects and failures that can manifest in both the short and long term.

Load Transfer and Structural Performance: Why 38 mm?

The end bearing area of a joist serves as the direct conduit for transferring distributed live and dead loads from the floor system to the supporting elements - walls, beams, ledgers, or ribbon boards. The specified 38 mm minimum is more than an arbitrary dimension; it establishes a confidently safe area for the following key functions:

  • Load Distribution: The wood fibers at the end of a joist must distribute concentrated stress over a large enough area to avoid exceeding their compressive strength perpendicular to grain. Insufficient bearing can lead to locally exceeding compression limits, risking crushing of the fibers and irreversible deformation.
  • Shear Transfer: The interface between joist and support must provide enough surface area for shear transfer, particularly in joists carrying cantilevered balconies or high live loads (e.g., amenity spaces).
  • Lateral Stability: Adequate bearing resists tipping and twisting at the joist ends-a small contact area can serve as a ‘pivot,’ promoting lateral instability and possible failure under dynamic loading.

The 38 mm figure is informed by both the standardized width of common North American dimension lumber (38 mm nominal, e.g., “2x” members) and extensive testing of wood-to-wood and wood-to-steel interfaces under various loading regimes. Most notably, the compressive strength perpendicular to grain for SPF (Spruce-Pine-Fir) lumber, prevalent in Alberta, ranges from 2.8 to 5.5 MPa. The code-ensured area balances practical constructability (matching typical joist widths) and redundancy, ensuring variations in field cutting or inconsistent bearing don’t undermine performance.

Crushing of Bearing Zones: Mechanisms and Manifestations

One of the chief dangers of insufficient end bearing is the possibility of localized crushing at the support interface. This failure mode arises when the compressive force at a point overwhelms the perpendicular-to-grain capacity of the wood fibers, resulting in:

  • Irreversible indentation and settlement at the end of the joist.
  • Cumulative differential settlement between joists, producing bouncy or uneven floors.
  • Potential “hinge” action at the support, leading to rotation or loss of load-bearing function.
  • Crushing of lower support elements, especially in load paths with multiple stacked floors.

Crushing is especially insidious in multifamily applications with point loads (e.g., kitchen islands), heavy finishes (tile, stone), or areas of concentrated live load (corridors, lobbies). The 38 mm minimum provides a robust safety factor for common occupancy types, minimizing serviceability issues and call-backs for settlement-related repairs-a key concern for warranty coverage and long-term asset performance.

Avoiding Inadequate Support: Joist Slip, Sag, and Disengagement

A bearing length under code minimum can also result in insufficient physical engagement between joist and support. On upper floors, this can result in joists ‘walking off’ their ledgers, particularly under lateral, wind, or seismic loads. Dynamic live loads-residents, furniture movement-can also accelerate this process. Sagging floors are an early symptom; progressive disengagement may ultimately lead to a partial floor collapse in rare but catastrophic cases.

Multifamily structures place especially high demands on repetitive member connections due to the scale and stacking of loads through floor assemblies. The code’s bearing standard ensures repeated safe transfer even if one or more elements deviate due to field tolerances or small errors.

Maintaining Joist-Support Connection: Fasteners, Blocking, and Lateral Restraint

While bearing length is critical, it is not the only parameter governing the security of the joist-support interface. The NBC requires not only the correct bearing but also robust mechanical connection. In Alberta, multifamily projects typically employ:

  • Toe-nailing or end-nailing protocols to fasten joist ends to supports.
  • Joist hangers, especially for abutting beams or ledgers where full bearing is impractical; hangers must be installed precisely, with manufacturer-specified fasteners-not drywall screws.
  • Blocking and strapping at joist ends to resist rotation and maintain alignment.

Nevertheless, none of these details can compensate for a deficient bearing area. With less than 38 mm, even robust fastening may not avert compression-related failure or disengagement under cumulative loading.

Joist Twisting: The Hidden Hazard

Shortened bearing also enhances the risk of joist twisting (“rollover”), especially if subjected to out-of-plane forces, temporary construction loads, or drying shrinkage. This is a recognized cause of both immediate failure (e.g., rolling under foot traffic) and long-term floor vibration complaints. In tightly packed multifamily suites, encased services and limited access for post-construction corrections amplify the consequences.

Full-width bearing-at least 38 mm-substantially raises torsional resistance by providing a wide contact surface, boosting friction and fastener performance. When combined with perimeter blocking and bridging, this mitigates most causes of joist roll.

Ribbon Boards: Code-Recognized Alternative Support Strategy

The NBC provides an alternative support method for floor joists: the use of ribbon boards, at least 19 mm by 89 mm, let into the edge of wall studs. When properly installed, ribbon boards act as a continuous ledge, supporting the full length of each joist bearing end while distributing loads evenly along the perimeter wall assembly.

Practical advantages of ribbon boards in multifamily construction include:

  • Uniform load transfer through the wall plate, minimizing point loading on studs.
  • Improved bearing for I-joists or deep floor truss ends where traditional notch support is unfeasible.
  • Expedited framing workflow, as ribbon boards allow joists to be dropped into place across a large perimeter segment simultaneously.
  • Simplified future modification or service runs at the wall base, since the ribbon creates a predictable cavity detail.

However, strict adherence to code dimensions-19 mm minimum thickness (nominal 1x material), 89 mm depth (same as standard 2x4)-and embedment detail (“let in”) is critical. Any field deviations-undersize ribbon, missing notching, or partial engagement-drastically reduce load transfer capacity.

Comparative Code Context: National, Ontario, and British Columbia Requirements

While the 38 mm minimum bearing length is standard within the National Building Code of Canada, regional codes demonstrate both alignment and subtle divergence based on local construction traditions and environmental conditions.

  • Ontario Building Code: Calls for a slightly higher minimum of 40 mm end bearing where joists meet masonry. This small increase reflects the greater need to avoid point loads on brittle substrates, and accounts for Ontario’s broader use of masonry low-rise structures. The increment, though minor, can alter material selection, detailing, or acceptability of 2x framing without shim or adjustment.
  • British Columbia Building Code: Aligns fully with the NBC’s 38 mm standard, accepting ribbon boards of the same size, and reflecting the predominance of platform framing and wood construction in BC multi-unit projects.

Jurisdictional variation is a potent reminder to coordinate out-of-province design elements-such as proprietary joist hangers or factory-cut engineered components-with local code officials. In Alberta, where provincial adoption mirrors the NBC, no regional amendments currently increase the minimum, but periodic review is prudent.

Material Selection: Ensuring Bearing Compliance in Engineered Floors

Modern multifamily projects frequently employ engineered floor systems-LVL or PSL solid sawn girders, I-joists, open-web trusses-demanding extra vigilance to comply with minimum bearing. Engineered products may present:

  • Reduced end grain area: Some I-joist and truss designs possess relatively narrow bottom chords at support ends, risking non-compliance with code minimum unless the entire end of the member sits on the support.
  • End coating: Engineered members require careful field repair if cut or modified; a reduction in bearing surface by even 10 mm can imperil code compliance and warranty coverage.
  • Connector compatibility: Standard joist hangers may not achieve 38 mm “seat” depth with all engineered elements, necessitating selection of deeper, specialty connectors or custom lumbar finishing.

Alberta suppliers collaborate closely with major engineered lumber manufacturers; still, a robust shop drawing verification process should check every loaded joist and beam end for adequate bearing. This is especially critical at transitions between traditional and engineered members, and when ordering pre-cut materials for phased, multi-level projects.

Shop Drawings, Submittals, and BIM: Codifying Bearing Lengths Pre-Construction

The specification and documentation of minimum bearing length requirements should be embedded from earliest schematic and shop drawing phases. Common practice on Alberta multifamily projects includes:

  • Explicit dimensioning of all bearing zones on structural steel, wood beams, slabs, and wall plates on the issued-for-construction plans.
  • Floor framing schedules that note any deviation from 38 mm bearing-and provide cross-references to specialty products (e.g., proprietary ribbon boards).
  • BIM coordination of joist, wall, and beam interfaces, flagging “clashes” where bearing length may be compromised by architectural or MEP features (e.g., duct chases, egress corridors).

These precautions limit costly on-site improvisation and provide clear inspection checkpoints. As Alberta transitions to increasingly digital project delivery, integrating bearing length data into BIM objects and clash detection routines supports upfront compliance and post-construction verification.

Construction Execution: Field Best Practices for Consistent Bearing

Achieving reliable bearing length compliance on site requires orchestration across design, material procurement, and worker execution. Common risks and mitigations in Alberta multifamily includes:

  • Field overcuts and notches: Pressure to correct layout errors or adjust openings often leads crews to shorten joists, unintentionally reducing bearing. Strict tolerance review and pre-cutting at supplier yards significantly mitigates this risk.
  • Settlement of supports during building loading: Compacted soils or green plates can sink during drying and loading, creating the illusion of reduced bearing. Prompt sequencing of framing, preliminary load cycling, and regular verification of bearing after weather or schedule delays can identify issues early.
  • Irregular wall geometry: Out-of-plumb or out-of-level supports cause variable bearing throughout the floor plate. Systematic laser measures and shimming-using code-accepted materials-ensures the code-required minimum is maintained for the entire length of all joists.
  • Parallel chord vs. perpendicular layouts: Occasional shifts in framing orientation (e.g., to accommodate corridor runs or stacked washrooms) can confuse bearing continuity; careful coordination among framing and layout crews ensures no missed detail.

Industry leaders in Alberta often field supervisors with explicit authority to reject any joist support that does not visually and physically match the code dimension. New framing crews-especially during peak labour shortages-require close mentorship and ongoing education to ensure best practices persist across all floor plates.

Inspection, Quality Assurance, and Post-Construction Verification

Alberta’s regulatory environment entrusts responsibility for code conformance to both third-party inspectors and the professional of record. For multifamily projects, bearing length is typically checked at:

  • Pre-sheathing inspection: A critical step, before decks conceal the joist ends, for both code and warranty compliance.
  • City or provincial framing inspections: Jurisdictions may spot-check, but a trusted field review by the project structural engineer provides the highest level of accountability.
  • Commissioning and turnover walk-throughs: Visible signs of shifting, crushing, or other bearing-related distress are red-flagged before occupancy.

Digital photo documentation and measured checklists further bolster the project record, essential for defending against post-handover claims of uneven floors, door misalignment, or excessive vibration. Industry best practice is to retain such evidence for the full warranty window plus a defined operations period-often seven to ten years on large projects.

Legal, Warranty, and Insurance Ramifications

Failure to ensure the code-mandated minimum bearing length has far-reaching implications beyond immediate structural performance. Alberta’s New Home Buyer Protection Act and common multifamily insurance policies create explicit obligations for code compliance. Non-conforming installations, if revealed during a post-occupancy dispute or forensic investigation, can:

  • Invalidate warranty claims related to floor movement, sag, or finish separation.
  • Expose project teams and design professionals to liability for non-compliance or negligence.
  • Trigger costly remediation obligations, including floor demolition or invasive reinforcement.
  • Complicate sale, refinancing, or condo conversion due to the risk of ‘latent defect’ claims.

Given the ease with which inspectors can measure bearing at frame stage, there is minimal defense for missing the requirement-making it a prime focus area for both internal QA programs and external audit.

Long-Term Asset Performance and Lifecycle Value

Multifamily owners and investors in Alberta increasingly focus on lifecycle value and occupant satisfaction. Joist bearing length, as a building block of floor assembly quality, directly correlates with:

  • Serviceability over time: Uniform, code-compliant bearing limits differential settlement and associated service requests, reducing long-term operating costs.
  • Finish durability: Floors with minimum end bearing better withstand point loads, reducing tile cracking, floor squeaks, and drywall stress-cracking at ceiling seams.
  • Noise and vibration control: Uniform, full-width bearing ensures even frequency response, minimizing transmission of impact and airborne sound-a key asset in premium suites and amenity-rich buildings.
  • Adaptability for future renovation: Full bearing at joist ends simplifies retrofit-including services drops, floor penetrations, or layout change-by providing a reliable, code-reviewed base.

While minimum bearing is not the sole determinant of long-term performance, systemic underperformance in this parameter is a red-flag indicator for broader construction quality risk.

Design Optimization: Above-Minimum Bearing for Critical Loads

Certain Alberta projects-such as those with heavy live load zones, gymnasiums, or special-purpose rooms-may benefit from specifying bearing lengths in excess of the code minimum. Structural engineers may call for 50 mm or greater bearing in:

  • Transfer beams at podium levels, where cumulative loads from stacked suites concentrate over a few linear feet.
  • Cantilevered support points for balconies or projecting floor areas, where uplift or eccentric loading is a factor.
  • Heavily loaded corridors designed for frequent move-in/move-out and occasional equipment transport.

Though 38 mm constitutes a baseline, industry practice supports matching the bearing length to demand-especially on edges, corners, and changes-in-direction where load paths can be complex. This margin absorbs minor field errors, settlement, and material irregularity.

Ribbon Boards Revisited: Detailing and Installation Best Practices

Execution quality for ribbon boards directly impacts efficacy as a joist support. Alberta experience highlights several critical points:

  • Let-in depth: Ribbon boards must be embedded full thickness within the studs, not face-nailed, to guarantee structural engagement.
  • Material selection: Knot-free, dimensionally-stable lumber reduces splitting during installation and preserves capacity during building movement or shrinkage.
  • Sequencing: Ribbon boards should be installed prior to joist placement but after the wall layout has been fully verified-premature placement may require destructive alterations.
  • End bearing and length: Ribbon boards should extend past the last supported joist by at least the member depth to provide redundant capacity at corners and wall discontinuities.

Well-installed ribbon boards ensure consistent bearing, resist withdrawal forces, and serve as a reliable interface for future repairs or upgrades. Poorly installed or non-code compliant boards, on the other hand, become a systemic weak point with consequences for the whole floor line.

Coordination with Fire and Sound Assemblies

In Alberta’s multifamily market, code-compliant floor assemblies must also achieve high standards of fire-resistance and sound attenuation. Floor-to-wall connections-and thus joist bearing details-are a major locus of:

  • Fire-separation continuity between units, corridors, and stairwells.
  • Airborne sound path interruptions, especially in mid-floor penetrations.
  • Thermal bridging and condensation control at exterior wall supports.

Maintaining the full 38 mm minimum bearing-without interruption or air gap-helps preserve the integrity of fire- and sound-rated assemblies. Any reduction in joist-to-support contact area, e.g. via overhanging or misaligned board, may create air paths that weaken the overall assembly rating, inviting corrective action at substantial cost and time delay.

Sequencing, Scheduling, and Subtrade Integration

In large-scale developments, sequencing of joist support installations relative to subtrades is a logistical challenge. HVAC, plumbing, and electrical runs can conflict with joist bearing zones, especially at furred-down sections or mechanical chases. Key strategies include:

  • Advance coordination meetings to define critical bearing lines before in-wall services are prioritized.
  • Pre-built blocking modules to preclude unauthorized site modifications (“field fixes”) that encroach on joist ends.
  • Clear communication of bearing requirements in subtrade scopes, forestalling disputes over penetrations or late changes.

Where unavoidable, careful engineering review is needed to ensure openings through supports don’t reduce bearing length or alter load transfer paths-requiring potentially enhanced headers or local reinforcement to maintain code compliance.

Remediation Strategies for Bearing Deficiencies

Discovering sub-minimum bearing at completion-while rare with robust QA-remains a pressing concern. Corrective actions vary depending on construction stage and severity:

  • Pre-sheathing: Reinforcement with steel angles or plates, shimming with code-approved materials, or replacement of undersized joists before subfloor installation.
  • Post-sheathing: Localized removal of deck for bearing extension, installation of supplementary ledgers, or application of jack supports-each with operational and cost impacts.
  • Legal documentation: Comprehensive photo log, engineer-of-record review, and formal sign-off, as future occupants and insurers may scrutinize any deviation, even if remediated.

Original causes-manufacturing error, layout drift, field-cutting beyond tolerance-must be identified to prevent recurrence on future phases or projects.

Innovation and Future Trends: Beyond Minimums for Resilient Construction

Emerging trends in Alberta-such as mass timber, prefab modular assemblies, and high-performance engineered connections-are shaping next-generation expectations for joist bearing zones. While the 38 mm minimum remains foundational, evolving project typologies drive:

  • Integration of proprietary connectors providing both enhanced bearing area and modular facilitation.
  • Digital on-site measurement tools (laser scanning, photo-verified apps) to document bearing compliance in real time.
  • Stronger partnerships between structural engineers, manufacturers, and framing contractors to match innovation with unwavering code adherence.

These advancements reinforce, rather than supersede, the bedrock requirements of NBC 9.23.9.1.(1), positioning Alberta’s multifamily sector at the intersection of safety, quality, and technological agility.

Conclusion

The minimum 38 mm end bearing for floor joists, and the prescribed standards for ribbon board support, are not mere formalities-they are cumulative outcomes of engineering, material science, and field experience, directly shaping the strength, safety, and performance of Alberta multifamily structures. Vigilant adherence to these widely adopted standards protects structural load paths, limits serviceability complaints, minimizes legal and insurance risk, and underpins asset performance for years to come. High-caliber project teams embrace proactive documentation, precise construction, and on-the-ground enforcement of bearing length requirements as integral to project success.

For multifamily projects that demand lasting performance and risk mitigation, code-compliant joist bearing is an essential, non-negotiable foundation-one that Kingsway Builders ensures on every Calgary build.
