Up to 20% of residential structure fires across Canada originate in attached garages, a fact that continues to inform Alberta's increasingly rigorous approach to fire separation requirements. Flammable liquids, internal combustion engines, stored fuel, and electrical systems in garages create a unique confluence of fire risk, demanding robust fire compartmentation between garage and living space. Alberta Building Code (ABC) Article 9.10.9.16 and related provisions mandate comprehensive fire-resistance ratings, robust air and gas barriers, and strict specifications for materials, assemblies, and openings. The correct interpretation and application of these requirements is fundamental to the liability, operational safety, and performance of multifamily projects in Alberta municipalities.

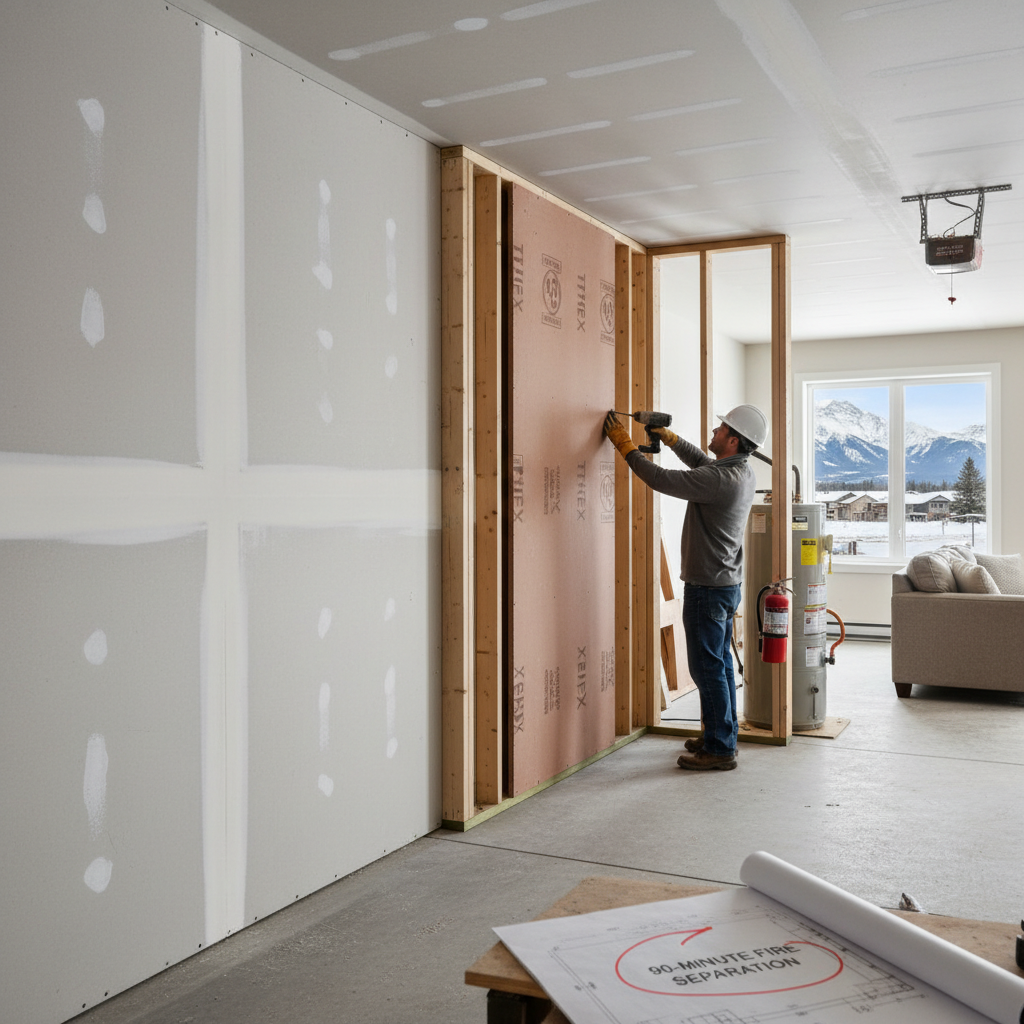

Fire Separation Ratings: Navigating the 1 Hour and 1.5 Hour Thresholds

The foundation of fire separation for attached garages is the established fire-resistance rating required between these potentially hazardous spaces and adjacent occupancies. Article 9.10.9.16 of the ABC is explicit: storage garages must be separated from other occupancies by a fire separation with a minimum 1.5-hour rating, except where the garage accommodates no more than five vehicles, in which case the minimum can be reduced to 1 hour. For garages serving only a single house or individual dwelling unit to which they are attached, this fire separation requirement can be waived if the garage is considered part of the dwelling unit itself. However, in all multifamily and mixed-occupancy situations, proper fire separation is mandatory; waivers are rare and represent the exception, not the rule.

Practical Implications:

  • Design Impact: The required 1 hour or 1.5 hour fire-resistance rating dictates not only the type and thickness of gypsum or other board stock but the entire assembly from studs/substrates to fasteners, penetrations, and joint treatment.
  • Cost and Schedule: Higher fire-resistance ratings impact cost through thicker or additional layers of board, low-flame-spread sealants, complex joint detailing, and more stringent third-party inspections or testing. Schedule implications include drying time, inspection scheduling, and corrective delays if assemblies do not meet mock-up or field-testing standards.
  • Real-World Complexity: Where fire separations run through demising walls between stacked parking/garage levels, mixed-use podium designs, or townhome clusters with attached garages, every interface must be treated as a potential path for fire/smoke spread. Coordination among disciplines is often the limiting variable.

Assembly Rating vs. Component Rating

Field performance depends on the integrity of the entire wall or floor/ceiling assembly, not just the fire-resistant board. All components-insulation, penetrations, fasteners, caulking, adhesives-must be compatible and certified for the specified resistance period. For integrated garage/living boundaries, weak links such as electrical boxes or service chases are typical points of leakage and compliance failure, and certification of the assembly as a whole (per CAN/ULC-S101) is mandatory.

Interpretive Challenges

  • Change of Use or Reconfiguration: Adding an in-law suite, converting a garage to living space, or combining garages for multiple units can trigger a regulatory shift, instantly altering fire separation requirements mid-project or post-occupancy.
  • Municipal Interpretation: While the 1 hour (single-vehicle/single house) vs. 1.5 hour (multi-vehicle/multi-unit) demarcation is clear, many AHJs (Authorities Having Jurisdiction) in Alberta apply their own interpretations-be it based on perceived risk, project scale, or new evidence from recent investigations of fire loss events.

Interior Finishes: Achieving the Fire Barrier

To ensure that fire separations act as genuine fire stops and not just as notional boundaries, the ABC specifies minimum standards for interior finishes in all attached garages bound to living spaces: not less than 12.7 mm (1/2 inch) thick Type X gypsum board, lath and plaster, or a proven equivalent tested to CAN/ULC-S101 for a minimum 15-minute barrier to flame passage. These interior finish requirements apply to all garage walls and ceilings abutting or forming part of the fire separation.

Best Practice Details:

  • Type X Gypsum Board: Standard board is insufficient; fire-rated Type X gypsum is specifically engineered with glass fibers and non-combustible additives to prolong structural integrity and delay heat transfer.
  • Fastening Schedule: Screws and nails must conform to manufacturer and CAN/ULC-S101 assembly specifications, typically spaced closer than in non-rated walls, and installed to manufacturer’s pattern.
  • Seams and Joints: All joints must be finished with ASTM C475-conforming tape and compound, with special attention where wall and ceiling planes intersect. Unfinished seams permit rapid fire and smoke penetration, nullifying the assembly's rating.
  • Substitution Risk: Use of alternate materials (e.g., fiber-cement board, proprietary fire barriers) must be backed by equivalent certification-not merely laboratory test data or general fire-resistance ratings.
  • Integration with Bulkheads and Air Ducts: Every soffit, drop ceiling, or garage-to-interior duct chase within the separation must be finished to the same fire-resistance specification as adjacent garage/living boundaries.

Legacy and Renovation Issues

Retrofitting older attached garages with substandard finishes presents ongoing liability for developers and property managers. In multifamily settings, especially those built prior to 2006 code updates, many garage/living separations may be painted OSB, thin drywall, or lightly insulated wood framing. Bringing these assemblies to present code with 12.7 mm Type X gypsum or certified alternatives affects not only fire safety but also insurance premiums and property valuation.

Thermal Insulation: Maintaining Performance and Prevention

Fire safety and energy efficiency are synergistic requirements in the ABC. For attached garages, the same boundaries that are required to stop fire and smoke must also provide effective resistance to heat flow and minimize frost risk. Subsection 9.25.2 of the Code sets insulation minimums, with the intent of preventing both excessive heat loss from conditioned space and cold-bridging that may compromise long-term durability or increase condensation/fire spread risks in cavity spaces.

  • Minimum Insulation Values: Exterior framed walls abutting unconditioned garage space require at least RSI-2.11 (R-12); ceilings below attics must achieve RSI-6.0 (R-34).
  • Material Compatibility: Do not insulate fire-rated assemblies with non-tested foams, as these may degrade the fire rating or generate toxic smoke in a fire event. Glass fiber/mineral wool insulation, when used within certified assemblies, does not diminish fire resistance.
  • Thermal/Fire Detailing: Insulation must run full-depth to corners and edges, but leave all required clearance from combustion appliances, flues, or electrical boxes as per code and manufacturer instructions.
  • Hybrid Separation/Air Barrier: Insulation continuity at the garage/living interface is frequently compromised at rim joists, party wall returns, or service penetrations-often failing both R-value and fire-resistance. Pre-construction coordination, detailed shop drawings, and third-party inspection are the only reliable means of compliance.

Cost Implications

High-performance insulation may increase initial capital costs but usually results in reduced HVAC sizing, lower leakage, and fewer occupant comfort complaints. In institutional multifamily markets, these benefits translate directly to lower O&M cost and higher investor net operating income (NOI).

Openings and Doors: Integrity at Every Interface

Openings between attached garages and living areas remain the most common weak point in fire separation. ABC Article 9.10.13.15 demands that all such doors be tight-fitting, weatherstripped, and equipped with a self-closing device. They are to provide not only a barrier to fire, but also to gas and exhaust fumes, given the garage’s heavy exposure to carbon monoxide and volatile compounds.

  • Acceptable Door Types: Only doors labeled as 20-minute fire-rated-typically solid-core wood, steel, or certain composite doors-are acceptable. Hollow-core models are insufficient, even if thickly painted or retrofitted with sweeps and seals.
  • Weatherstripping: Compression weatherstripping is required not just for fire and smoke, but to block transfer of gases and fumes from vehicles and equipment-limiting long-term buildup in adjacent living spaces, a rising concern in Alberta’s air quality investigations.
  • Self-Closing Devices: Doors must be equipped with listed self-closers to maintain protection even in the event of occupant error or neglect (propping open a door, for instance, will negate all other fire/gas protection measures).
  • Location Restrictions: No doors (or hatches) are permitted between a garage and a sleeping room. This protects the most vulnerable occupants from exposure to quick-moving night-time fires or undetectable exhaust gases.
  • Seam Integrity: Every gap between frame, casing, floor, and door leaf must be treated. Fire- and gas-rated caulks may be required at jambs, thresholds, and head details, especially where door frames are installed into framed demising walls subject to movement and shrinkage.

Impact on Security and Use

Heavy-duty fire-rated and gas-sealed doors create new constraints on door operators, accessibility, and routine use. Frequent loss (or intentional disconnection) of self-closing devices post-occupancy highlights the need for robust hardware specification and tenant/owner education. Projects targeting luxury or universal access markets may need custom solutions balancing code, security, and marketing priorities.

Air Barriers: Controlling Hidden Threats

Fire and smoke are visible, but the migration of exhaust gases, particularly carbon monoxide, is a stealth hazard with severe documented impacts on occupant health and building liability. ABC Article 9.10.9.16(4) requires that air barrier systems conforming to Subsection 9.25.3 be installed at every boundary between attached or built-in garages and conditioned spaces. This applies even when the garage is considered part of the dwelling unit for fire separation purposes.

  • System Requirements: Barriers must be continuous and air-tight, installed to manufacturer’s instructions, and verified as continuous through third-party inspection or blower-door testing. Leading systems include 6-mil polyethylene sheeting, liquid-applied membranes, or specialty tapes and gaskets.
  • Integration with Fire Assemblies: The air barrier cannot pass in front of or behind the rated fire separation: it must be fully sealed through all outlets, service penetrations, or corners. Coordination with mechanical systems is vital-HVAC, vacuum systems, central vacs, and electrical boxes are all routes for air leakage.
  • Visible and Concealed Barriers: Rarely are air barrier systems continuously visible or accessible after framing inspection. Detailed as-built documentation is vital for future retrofits and liability defense.
  • Commissioning: Occupied buildings must demonstrate the ongoing performance of air separation: negative pressure leakage from garage to living space is a prime cause of both code violation and civil claims in Alberta’s multifamily market.

Materials Selection

Selection of air barrier material is driven by compatibility with rated wall assemblies, exposure, and adjacent construction methods. For wood frame, flexible sheeting or spray-applied elastomers often provide superior long-term resilience to movement and cracking compared to rigid boards. Where garage walls interface with concrete or steel assemblies, joint detailing and transition membranes require particular care and professionally prepared shop drawings outlining each junction and penetration.

Construction Detailing: Addressing Edge Cases and Field Realities

In the field, few separations are truly straight lines. Real garages present complications: pipe and duct penetrations, stair landings, attic hatches, cantilevered floors, or drive-under configurations. Every field condition must preserve both the fire and air integrity of the separation, leading to nuanced and often bespoke solutions.

  • Service Penetrations: All penetrations for gas, plumbing, or electrical routing must be sealed with fire- and smoke-rated systems. Fire caulks, intumescent collars, and steel escutcheons are commonly specified; field substitution or deviation from listed systems is not permissible.
  • Floor Assemblies: Where living space is located above an attached garage, the entire floor assembly must meet or exceed the specified fire-resistance rating, typically through double layers of Type X board, mineral wool insulation, and interstitial air barrier continuity. Manufacturers’ proprietary fire-rated floor-ceiling assemblies frequently include detailed component listings-substitutions are not allowed unless expressly tested.
  • Attic and Crawl Space Access: All hatches or access doors must be fire-rated and weatherstripped, located to avoid direct garage-living connections where possible. Ladders and drop-down stairways present special risks and rarely meet the requirements for a rated separation without post-occupancy modification or custom site detail.
  • Structural Integration: Fire-rated assemblies must not be compromised by the installation of beams, columns, or bearing walls that are not themselves protected to the rated assembly. In Alberta’s cold climate, insulation often competes for space with required fireblocking, increasing the risk of code deficiency if detailing is not confirmed through both design review and field verification.

Documentation, Inspection, and Liability

Building to code is not enough-demonstrable compliance is critical for occupancy, insurance, and litigation defense. Accurate documentation at every phase, including product certifications, assembly details, inspection reports, and as-builts, reduces exposure and enables smooth handover from construction to ownership or property management.

  • Product Submittals: All fire-rated boards, doors, hardware, air barriers, and insulation must be backed by up-to-date product certifications. Substitutions post-tender are a major cause of delay and certificate of occupancy denial.
  • Inspection Regime: Concealed assemblies require sign-off before closure; third-party inspection for firestop, penetration, and barrier verification is increasingly the Alberta standard, particularly following highly publicized loss events involving garage-living fires.
  • Occupancy and Turnover: Warranty claims and owner/tenant fit-ups often trigger re-inspection. Missing or undocumented firestopping, absent self-closers, or incomplete air barriers generate significant costs in rework and delay if not identified before occupancy.

Financial Ramifications: Impact on Cash Flow and Asset Value

Application of ABC-mandated fire separations directly impacts project pro forma, insurance, and downstream cash flow.

  • Insurance Premiums: Underwriter scrutiny has increased post-2010 as loss histories from improper garage separation mount. Projects without independent documentation of compliant, certified assemblies typically face higher annual insurance rates, depressing net returns.
  • Capital Asset Value: Multifamily or mixed-use assets with robust physical separation, air/gas controls, and third-party inspection reports trade at a premium. Underlying compliance is now a due-diligence item for institutional buyers/investors.
  • Retrofit Risk: Older buildings with substandard separations often require costly upgrades at sale, refinancing, or change-of-use-creating cash leaks and latent liability.

Exceptions, Edge Cases, and Evolving Best Practices

While code offers explicit guidelines, building science and market practice continue to advance. Several modern trends and technical edge cases further nuance the application of garage-living fire separations:

  • Green and Prefabricated Construction: Panels tested as a unit under CAN/ULC-S101 are accepted if auditable to ABC-specified ratings. However, factory-to-site connection details must carry the same certification; field-modified or incomplete connections have led to notable failures in both fire and gas resistance.
  • Passive House and High-Performance Buildings: Thicker, denser insulation, multiple airtight layers, and overcladding demand special sequencing and supervision to maintain both required fire rating and air barrier continuity at every interface.
  • Dynamic Loading and Seismic Consideration: Movement joints (expansion/contraction) between garages and conditioned spaces must be fire-stopped and sealed against gas transmission. Not all standard fire- or air-barrier solutions are robust to repeated movement or settlement.
  • Material Supply Chain: Alberta’s climate, geography, and often-volatile gypsum supply means early procurement and substitution planning (with full certification) is critical to maintain fire-resistance intent without project delay.

Integration with Mechanical and Electrical Systems

Every duct, conduit, or chase that traverses the garage-living separation represents both a potential breach and an ongoing inspection point. Fire dampers, intumescent wraps, and gas-rated collars must be specified in coordination with both the mechanical and fire/life safety documents, with explicit accountability for installation, testing, and long-term maintenance documented at turnover to property management.

Summary Table: Garage-Living Fire Separation Compliance Essentials

  • Fire-Resistance Rating Required: 1.5 hours (general); 1 hour (garage ≤5 vehicles); may be waived for attached single-family garages considered part of dwelling unit.
  • Interior Finish: Minimum 12.7 mm Type X gypsum or certified equivalent per CAN/ULC-S101.
  • Insulation: Walls RSI 2.11 (R-12); Ceilings RSI 6.0 (R-34).
  • Openings/Doors: Tight-fitting, weatherstripped, self-closing, minimum 20-minute fire rating, not opening into sleeping rooms.
  • Air Barrier: Continuous, sealed, to Subsection 9.25.3; all penetrations detailed, documentable, and tested.
  • Inspection/Documentation: Product certification, closed-in inspection, third-party reporting, as-builts required.
  • Retrofit Risk: Missing, incomplete, or undocumented fire separations trigger delayed closing, costly remedial work, and suppressed asset value.

Forward-Looking Compliance and Innovation

Evolving fire science, the rise of high-density multifamily design, and more acute awareness of long-term liability have raised the bar in Alberta for attached garage fire separations. Robust early coordination between design, code, and construction teams ensures that each garage/living interface withstands not just the letter but the intent of the code. Investment in premium assemblies at the outset reduces exposure to insurance loss, retrofit costs, and late-stage inspection complications. As occupant safety and regulatory scrutiny continue to escalate, code-compliant fire separations are not a cost line item, but a key driver of project success and risk mitigation in Alberta multifamily construction.
