Securing wood frame walls to concrete foundations is a defining factor in the resilience and safety of Alberta’s multifamily residential structures. The physics underlying building stability-especially the transfer of lateral and uplift forces-converge at the connection between foundation and superstructure, where anchor bolts play a pivotal role. The precise maximum spacing, installation method, and sizing of anchor bolts, as mandated by Alberta’s adoption of the National Building Code of Canada (NBC 2019) and further specified in the Alberta Building Code (ABC 2019), dictate both code compliance and real-world performance in wind and seismic events.

Standard Anchorage-Understanding NBC 9.23.6.1.(1) and (2)

Section 9.23.6.1 governs the fundamental methods required for anchoring residential wood frames to concrete foundations. The fundamental expectation is simple: the building frame must be anchored to the foundations unless a fully qualified structural analysis proves that anchorage is unnecessary in that specific case. In practice, such analysis is rare in residential construction, enforcing the universal use of either embedded end joists or continuous anchor bolts for wood sills.

Method 1: Embedding Floor Joists Directly Into Concrete

One permitted method under 9.23.6.1.(2) is to extend the ends of the first floor joists into the concrete foundation itself. This older technique is now infrequently seen in Alberta, given complications with air/vapour barriers, insulation continuity, wood decay risk, and air tightness requirements. Yet in rare heritage restoration, or decks and shallow additions, embedding joists can offer robust mechanical anchorage. However, the thermal bridge created and modern code requirements for the building envelope sharply limit its viability for standard multifamily projects.

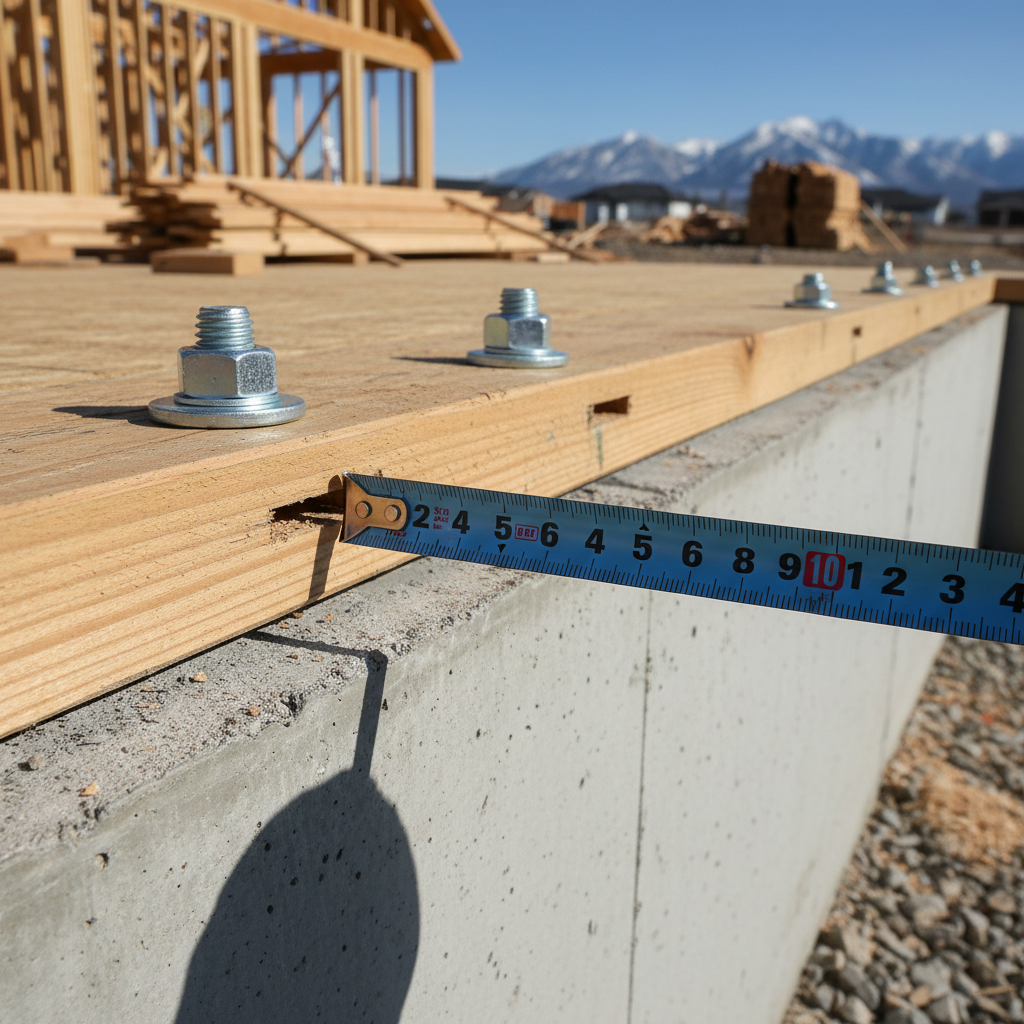

Method 2: Sill Plates Fastened with Anchor Bolts-NBC Requirements

The ubiquitous method involves fastening the wood sill plate (the bottommost framing plate of an exterior wall) to the top of the concrete foundation with steel anchor bolts. NBC 9.23.6.1.(2) requires anchor bolts:

  • Minimum Diameter: 12.7 mm (1/2 inch)
  • Maximum Spacing: 2.4 meters (7 feet 10 inches) on center

This is the default rule for low- and mid-rise residential wood frame structures in most Alberta municipalities. No reduction in spacing is required unless the building falls under the enhanced conditions defined in Sentence (3), but exceeding the 2.4 m interval-even locally-can result in nonconforming construction and severe structural vulnerability under wind or seismic loads.

Why 2.4 Meters? Engineering Rationale and Practical Performance

The 2.4 m (7’10”) spacing is a calculated balance between material efficiency and structural demand, reflecting empirical performance of tens of thousands of wood-frame buildings across Canada. The interval is close to a standard 8’ wall segment, thus aligning with common framing layouts. Glulam, LVL, and composite sills have not altered this rule; code demands compliance regardless of engineered wood species.

Each anchor bolt must be embedded at least 100 mm (4 inches) into the concrete to transfer uplift, racking, and sliding forces effectively. A typical 10” foundation wall easily accommodates this embedment, but attention must be paid to vertical alignment-a misaligned bolt or shallow embedment is an immediately flaggable inspection issue.

Practical Implementation and Inspection Issues

Executing compliant anchor bolt spacing requires planning from footing and wall formwork stage through to sill plate placement:

  • Layout Methodology: Bolts are usually set after first pour, while forms remain in place, using wall layout lines or laser tools for precision. It is not uncommon to see “field fit” corrections with holes drilled-these must be limited, as on-site installed post-installed anchors may not meet code unless demonstrated equivalency is provided.
  • Corner Cases: At corners or jogs, local reinforcement and placement within 0.5 m of wall ends is recommended even under base conditions, to prevent edge failure and uplift at discontinuities.
  • Material Considerations: Zinc-plated mild steel J-bolts or L-bolts are dominant in Alberta residential work. Epoxy/chemical anchors are used only as a repair or retrofit measure and must meet the same embedment and capacity requirements for code conformance.
  • Inspection Hurdles: Failures most often cited by municipal inspectors relate to over-spaced bolts, improper diameter (eg. undersized rods from big box hardware), insufficient embedment, or missing washers/nuts. The checklist must always confirm continuous anchorage within specification-gaps in coverage set up potential for wall displacement or overturning in high wind zones.

Enhanced Anchorage-9.23.6.1.(3): High Wind and Seismic Scenarios

While the above standards address typical Alberta sites, certain areas or building configurations trigger stricter requirements. Enhanced anchorage under NBC 9.23.6.1.(3) is mandated for any residential structure meeting:

  • Two or more storeys
  • Located where seismic spectral response acceleration Sa(0.2) ≥ 0.70 and < 1.2
  • Or 1-in-50 hourly wind pressure 0.80 kPa ≤ P < 1.20 kPa

The cities and towns across Alberta generally exhibit low to moderate seismicity, with only select foothill regions reaching Sa(0.2) above 0.70, although winds, especially Chinook and prairie gusts, pose more frequent design pressure triggers. Urban expansion into previously agricultural or exposed areas has brought more projects into wind-exposure zones where these enhanced requirements apply. Diligent review of the NBC climatic data tables at design phase is critical to preempt nonconformance or unnecessary overdesign.

Option 1: Larger Anchor Bolts, Same Spacing

Where enhanced conditions apply, one compliant approach is:

  • Minimum Diameter: 15.9 mm (5/8 inch) anchor bolts
  • Schedule: Located within 0.5 m (1’8”) of the ends of the foundation wall
  • Spacing: Maximum 2.4 m (7’10”) on center

Larger diameter bolts provide substantially higher withdrawal and shear capacity, directly counteracting increased design forces from wind uplift and seismic action. In practice, 5/8” HDG (hot-dip galvanized) anchor bolts are less common in residential suppliers, so procurement lead times and coordination with formwork contractors must anticipate any enhanced requirement. Sill plates predrilled for 1/2” bolts will need upsizing or new fabrication. Inspection should explicitly confirm bolt gauge at the slab or wall pour for any multifamily project in greater exposure areas.

Option 2: Closer Spacing, Standard Bolt

The alternative is to stay with:

  • Minimum Diameter: 12.7 mm (1/2 inch) anchor bolts
  • Location: Within 0.5 m (1’8”) of ends of wall or foundation
  • Spacing: Maximum 1.7 m (5’7”) on center

This option is frequently selected for practical reasons-ready availability of 1/2” anchor bolts, ease of predrilling standard sill plates, and trade familiarity with install methodology. The tighter interval increases both material and labor cost, particularly in long runs with limited foundation interruptions. However, it is often more cost- and schedule-efficient than switching to the larger, less common 5/8” hardware, especially in large-scale multifamily or townhome blocks where procurement logistics at scale influence cost per unit.

End-of-Wall Anchorage and Edge Distance Considerations

Both enhanced options for anchor bolt strategy require anchors within 0.5 m of each end of the foundation wall. This placement ensures uplift and racking forces are resisted right at termination points, minimizing unanchored segments susceptible to differential movement or localized failure. In multifamily construction, jogged or offset foundations-such as in stepped party walls or transitions to townhouse garages-must also be included in this count. Installers must coordinate locations in ambiguous areas to avoid ambiguous “shared” anchors at corners that inadvertently leave one segment over-spanned.

Casework: Retrofit and Remedial Upgrading on Existing Foundations

Upgrading existing wood frame buildings to meet enhanced anchorage (eg: when second-storey additions are constructed or properties are repurposed for denser occupancy) poses unique challenges. While code permits post-installed anchors if they are demonstrated as equivalent, most chemical or expansion bolts require special engineering sign-off-especially in older concrete with reduced compressive strength, surface contamination, or questionable edge distance. Mechanical wedge anchors can be workable, but embedment depth (min. 100 mm) and spacing must strictly match NBC provisions. Where in doubt, supplemental blocking or steel strapping tied into adjacent foundation segments may be required by consulting engineers.

The Relationship Between Environment and Anchorage Specification

The NBC’s tie between anchorage and local environmental loads is neither arbitrary nor static. Geographic exposure dictates base wind and seismic inputs, but local microclimates (valley floors, riverbank lots, infill sites with adjacent shielding) may significantly alter effective design wind pressure.

  • Seismic Zone Mapping: Alberta sits in a region of relatively low seismicity, but southwestern regions and parts of the Rockies see sufficiently high Sa(0.2) to trigger enhanced anchorage. Structural engineers, geotechnical consultants, and design authorities should jointly review current Geological Survey of Canada seismic data during predesign and permit submission.
  • Wind Pressure: Prairie provinces are notorious for wind gusts and extreme local variability; an exposed rural multifamily development may require enhanced anchorage, where a sheltered downtown infill remains within standard spacing limits. The “1-in-50 hourly wind pressure” values, found in referenced NBC tables, should be explicitly verified-overlooking these can lead to costly site remedial works after code inspection.

Beyond Bolts: Complementary Elements of Sill Plate Anchorage

Although anchor bolt spacing and sizing take center stage in code, overall sill plate performance also depends on several closely coupled details:

  • Washers: A load-distribution washer is required under the nut atop each anchor bolt. NBC does not specify size, but industry standards in Alberta lean toward 2” OD plate washers, which better mitigate crushing and splitting of the sill plate, especially with oversize or undersized lumber, or in areas with repeated drying and shrinkage cycles typical near slab elevation.
  • Nut Tightening: All anchors must be capable of being tightened post-cure, i.e., after the wall sill plate is in place. Bent or misaligned bolts often prevent this and require mechanical correction or local re-anchoring. Tightening sequence should avoid overcompressing green PT (pressure-treated) lumber.
  • Moisture and Decay Resistance: Sill plates must be pressure treated or naturally durable, especially where they contact concrete directly. Over time, unchecked moisture transmission will undermine even the best anchorage unless detailed attention is paid to air/vapour barriers, capillary breaks, and detailing. This is doubly true in below-grade or slab-on-grade construction common in multifamily podiums or walkout basements.
  • Anchor Bolt Material Selection: While standard zinc-coated steel suffices for most above-grade applications, below-grade or exposed environments demand HDG or stainless, especially in municipal projects where salt exposure or persistent moisture is present. Failure to upgrade can result in costly future replacement under warranty.

Common Anchoring Pitfalls in Alberta Residential Multifamily Projects

Field experience demonstrates several anchoring pitfalls that commonly affect compliance, performance, and cost containment in Alberta’s construction environment:

  • Overlooking Enhanced Anchorage Zones: Expanding suburbs, new wind-exposed sites, or rapidly reassessed seismic risk can quietly push a project into enhanced requirements. Omission is typically found at permit review or site inspection, halting progress and requiring rework.
  • Poor Coordination Between Concrete and Framing Trades: Inconsistent or imprecise anchor bolt layouts can conflict with wall stud placements, HVAC penetrations, or plumbing chases. Early and explicit coordination at layout and pour stage is essential, especially with tight spacing or non-orthogonal foundation plans.
  • Drilled and Epoxied Anchors After Pour: These are sometimes installed for “missed” locations, but rarely demonstrate equivalent capacity unless detailed by an engineer and subject to rigorous site testing protocols. Such solutions must not be considered code-compliant by default.
  • Excessive Anchor Bolt Embedment: Although deeper embedment is not prohibited, excessively long bolts (eg: 12-18 inches) can complicate onsite adjustment and increase material cost without practical benefit. Embedment much in excess of the 100 mm minimum should be reserved for cases where the foundation or anchor substrate is compromised.
  • Missing or Improper Washers: Using undersized standard washers or missing washers altogether results in crushed, split sill plates and unpredictable long-term anchorage loss. Plate washers should be specified and enforced as a matter of site best practice.
  • Improper Bolt Orientation or Thread Projection: Bolts skewed at pour can end up unworkable; insufficient thread above the plate leaves no room for nut and washer after plate placement. Bolt depth and orientation must be confirmed by site foremen before concrete sets.

Structural Analysis Exemption-Genuine, Rarely Invoked

Under 9.23.6.1.(1), the only exemption from anchorage by the two standard methods is a project-specific structural analysis conclusively demonstrating that anchorage is not required to resist design wind, seismic, and lateral earth loads. In Alberta, this exemption is rare. Even in deep urban infill, with extensive adjacent lateral support, consultants and municipal authorities generally prefer conservative compliance with explicit anchorage requirements over theoretical exemption.

However, in certain cases-such as below-grade concrete walls supporting soil on both sides, or short “stub” walls non-continuous above grade-a rationalized (engineered) approach may be considered. Engineers must provide clear load path analysis and reference site-specific wind/seismic values, along with a construction method statement, to justify any deviation. Authorities Having Jurisdiction (AHJ) in Alberta typically demand full calculation set and accept only under signature and seal of a professional engineer (P.Eng.).

For most projects, the prudent and expedient route is simply to meet or surpass the explicit NBC anchorage provisions.

Special Considerations-When OBC Part 4 Structural Design Is Mandated

When Sa(0.2) exceeds 1.2 or 1-in-50 wind pressure meets or exceeds 1.2 kPa, NBC directs designers to Part 4 structural provisions, requiring custom engineering analysis for anchorage. Few Alberta residential projects fall into these bands, but certain Rocky Mountain and foothill or extreme prairie edge locations may be applicable, especially in mixed-use or podium projects.

Part 4 analysis opens the door to nonstandard anchorage-proprietary connectors, tie-down straps with calc’d capacity, mass-timber or CLT-to-foundation connections-but also imposes explicit calculation, inspection, and documentation obligations. Engineers of record must demonstrate, via calculations and field performance data, that the selected strategy delivers at least equivalent resistance to code-minimum prescriptive solutions. This often demands higher-grade hardware, specialty anchors, or unique installation methods, driving material and labour cost significantly above standard sill bolt solutions.

When mandated by site exposure, custom detail must include explicit locations, sizes, material grades, embedment depth, and means of post-installation verification. AHJs in Alberta heavily scrutinize documented analysis, especially when warranty, insurance, and occupancy permits rely on clear load path definition.

Empire of Redundancy: The Role of Continuous Load Path in Multistory Structures

For multifamily and multistorey projects, anchor bolts are only one element in the continuous load path from roof diaphragm through frame to foundation. Sill plate anchorage must align with subsequent shear wall, hold-down, and diaphragm connections. Increasingly, Alberta code authorities look for explicit detailing connecting anchor bolts to hold-down posts or coupling with engineered sheathing continuity at floor edges. Any “break” in the load path undermines anchorage advantage, demonstrating the need for coordinated architectural, structural, and field-trade integration from earliest design through turnover.

Particular challenge arises in staggered floor plans, split levels, or stepped foundations typical of adapted sloped sites. In these configurations, anchor bolt plans must coordinate heights and transition points to avert discontinuity or unanchored wall sections. Mechanical and electrical penetrations also threaten to conflict with anchor placement, especially in high-density MEP zones near main entries or utility rooms.

Field Quality Assurance-Documentation and Verification

Alberta’s use of contractor self-checks, third-party inspection, and periodic municipal review means that anchor bolt compliance must be both visible and documented at every stage. Photographic evidence of bolt installation, torque-check logs for final tightening, and as-built drawings confirming layout are increasingly required by lenders, insurance underwriters, and regulatory authorities, especially for large unit-count projects.

  • Checklists: Site superintendents should use explicit checklists at foundation pour and sill plate install, capturing diameter, spacing, embedment, and end distance, complemented by physical measurement and photography before proceeding.
  • Punchlisting and Corrections: Any nonconforming bolt-be it spacing, sizing, embedment or missing hardware-must be corrected before construction proceeds, with punchlisting included as a requirement in subtrade scopes when practical.
  • Verification Tools: Laser scanning and digital layout, while more common in commercial, are increasingly being used in large multifamily residential jobs, allowing digital record of bolt layout against design model, hugely improving quality assurance.
  • Retention and Warranties: Clear documentation of code-compliant anchorage can head off warranty disputes and streamline future recertification or refinancing, yielding significant long-term risk mitigation benefits.

Comparative Practice: Alberta vs. Other Canadian Jurisdictions

While NBC anchorage provisions are consistent across Canada in structure, Alberta’s enforcement and project scale tend to yield specific field practices:

  • Proactively designing anchor plan for multiple wind/seismic scenarios, especially for phased developments
  • Universal use of PT sills in slab-on-grade and below-grade, regardless of code minimums, given moisture risk
  • Hybrid anchoring at critical locations (eg: high-traffic entries, party wall connections) for redundancy above code minimums
  • Consistent engagement with municipal plan checkers during early design stage to preempt costly on-site corrections

Inconsistency with practices in Ontario or BC typically arises in detailing (washer size, end distances) or interpretation of alternative methods, not in principle requirements; employers operating Alberta-wide must reinforce explicit NBC/ABC compliance with local inspectors, as even small deviations can lead to red-tagging in Calgary or Edmonton.

Cost and Scheduling Impacts of Anchorage Specification

The move from base code (1/2” at 2.4 m) to enhanced (5/8” at 2.4 m or 1/2” at 1.7 m) can increase anchor bolt count and hardware costs by 40-60%, with labor increments as tight intervals require more layout and increased handling of foundation intersections. Early estimation of foundation hardware along with detailed coordination between trade partners (concrete, framing, waterproofing) can prevent late-stage quantity and scope surprises that may snowball into delay claims or impact guarantees in fast-track multifamily schedules.

Where enhanced bolt spacing and diameter are necessary, purchasing and predrilling logistical plans should be made well before foundation pour to prevent costly downtime or change orders. Similarly, tie-in to warranty or design life must anticipate long-term durability of hardware and its interaction with chemical treatments in sill plates.

Best Practices for Effective Field Execution

  • Document Environmental Design Values: Always capture, early and explicitly, the project site’s seismic and 1-in-50 wind pressure values and note anchor bolt specification in foundation detail notes and bids.
  • Integrate Bolt Locations With Wall Layout: Overlay bolt plan with wall plate, MEP, and penetrations; resolve conflicts pre-pour via explicit mark-out or BIM/3D coordination.
  • Control Concrete Quality at Bolt Locations: Ensure foundation concrete is vibrated and consolidated at anchor points to prevent voids, which undermine embedment strength.
  • Check All Bolt Attributes at Installation: Prior to pour, confirm diameter, length, thread projection, and material; photograph and measure, then repeat after form strip to verify no bolt movement during pour.
  • Perform Pull-Tests or Inspection of Post-Installed Anchors: Post-installed anchors must not only match code dimensionally but demonstrate real equivalent pullout/shear capacity, especially in remedial work or after construction correction.
  • Keep As-Built Records: Maintain bolt layout, size, embedment, and correction log with documentation accessible for inspection, warranty, and insurance review.
  • Confirm Tightening After Framing: At framing, verify and document that all anchor nuts and washers are properly installed and torqued according to manufacturer and code minimums. Avoid over-tightening, especially with PT lumber.

Future Directions-Emerging Trends and Trade Developments

As Alberta residential and multifamily construction trends toward taller, denser, and more resilient wood frame solutions, evolution in anchor bolt technology and installation methods is emerging:

  • Proprietary Anchor Plates and High-Capacity Bolts: Market availability of high-capacity anchor systems, developed from commercial practice, may soon enter large-scale residential, especially as hybrid wood-steel podiums become more common.
  • Prefabrication and Modularization: Growth of panelized and modular superstructure favors precise, pre-installed anchorage points, increasing onus on precision layout and as-built capture at foundation stage.
  • Material Innovations: Transition to stainless or duplex coated bolts in high-exposure or below-grade applications is reducing long-term corrosion risk and warranty liability.
  • Digital QA/QC: As-built laser scanning, photographic records, and digital close-out packages are enhancing accountability, streamlining hand-off, and reducing disputes in large portfolio projects.
  • Resilience and Redundancy: Post-fire, post-flood, and post-windstorm performance studies are driving some designers and insurers to specify closer bolt spacing or additional mechanical ties over and above code minimums.

Conclusion

Maximum spacing for anchor bolts, as regulated by NBC 2019 9.23.6.1.(1) and enhanced by Alberta’s calculation of specific wind and seismic conditions, remains a foundational detail in the long-term safety and resilience of residential wood frame buildings. Success in execution demands not only technical comprehension of code text, but also the field discipline to document, coordinate, and integrate anchorage strategies into a holistic load path from foundation up. As Alberta’s landscape of multifamily development shifts toward denser, taller, more wind- and seismic-exposed projects, diligence in anchorage design and execution protects both immediate safety and future asset value.
