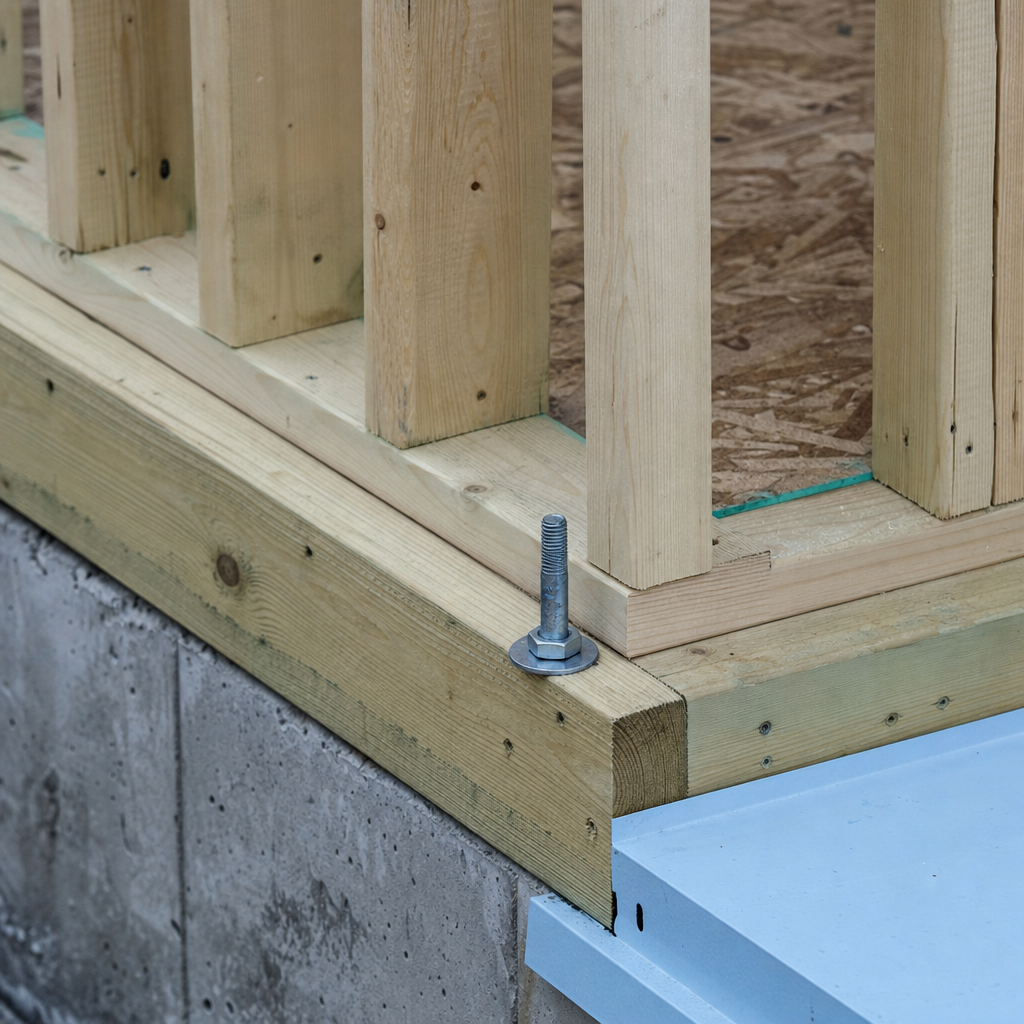

Anchor bolts positioned at the ends of sill plates are fundamental to the structural resilience of Alberta’s residential multifamily buildings. Section 9.23.6.4.(4) of the National Building Code of Canada mandates a dual-distance criterion for placing these anchors: no bolt shall be more than 12 inches (305 mm) from the end of the sill plate, and no bolt can be closer than seven times its own diameter from the end. When standard 1/2-inch (12.7 mm) anchor bolts are specified, as is typical practice in frost-prone or moderate seismic regions, this calculation yields a 3.5-inch (89 mm) minimum. These constraints play a pivotal role in resisting the major design loads transmitted to the foundation, especially lateral forces imposed by wind, seismic action, and differential settlement.

The Function of Anchor Bolts at Sill Plates: Force Transfer and Load Path Integrity

Proper placement of anchor bolts at the junction of the foundation and the superstructure is critical for maintaining a continuous load path. Sill plates-often preservative-treated SPF or hem-fir-sit atop concrete or masonry foundation walls, and serve as the interface for transferring uplift, shear, and compression loads between the wood framing and the concrete. The anchor bolts resist sliding (shear) and overturning (uplift) due to lateral wind and seismic events, in addition to anchoring the building against foundation movement.

If anchor bolts are either too close or too far from the ends of sill plates, the integrity of this load transfer is compromised. Too close, and there is risk of splitting the wood and a dramatic reduction in the capacity of the connection; too far, and the end-grain area of the sill plate may not be equally engaged, potentially leaving a section weakly restrained or susceptible to out-of-plane movement of the wall-the classic "toe kick" failure. These code-mandated limits arise directly from decades of fastener pull-out and connection testing, as well as from concern over local stress concentrations in Canadian SPF species.

Interpretation of NBC 9.23.6.4.(4): Dimensional Compliance and Implications

Maximum Allowable Distance: 12 Inches from Sill Plate End

No anchor bolt may be positioned more than 305 mm (12 inches) from the end of a sill plate. This provision ensures near-end resistance to racking forces, which concentrate at diaphragm boundaries and corners. On long, straight foundation runs, spacing at regular intervals (max 6 feet) suffices, but at each end, anchorage must remain within the 305 mm envelope.

Ignored or mislaid bolts-often seen in fast-paced multifamily pours with slab edge overhangs-leave end portions of the wall vulnerable to racking or out-of-plane movement. In corners, transitions, and at the ends of short sill plate segments between foundation steps or drops, this requirement gains prominence: irregular segments, returns, or jogged walls demand anchor positions be field-verified and, if needed, planned for in anchor-bolt layout drawings.

Minimum Distance: No Less Than Seven Times the Anchor Bolt Diameter

The code’s minimum is rooted in wood science: end-grain splitting and the reduction of holding ability occur when bolts are set too close to the plate end. The seven-diameter requirement mitigates the risk of splitting during bolt installation or under lateral loading by providing sufficient edge distance. For 1/2-inch bolts, the resulting 3.5-inch setoff is non-negotiable; for 5/8-inch bolts, the minimum jumps to 4.4 inches (112 mm), which can conflict with the maximum, particularly in narrow wall segments.

Field experience has shown that overly tight positioning-attempting to maximize foundation anchorage-can be counterproductive, especially in pressure-treated lumber, where checks or minor pre-existing splits may propagate into structural cracks under load or shrinkage cycles. For multifamily slab-on-grade or crawlspace foundations, adherence to this detail is an important defensive measure against cumulative settlement and incremental movement over time.

Structural Consequences and Real-world Failures from Non-compliance

Deviation from either the maximum or minimum spacing criteria can yield tangible damage from major events and repeated cyclic loading. In wind-driven events where positive and negative pressures act on exterior walls, the sill plate's anchorage either prevents or permits the entire framing assembly to slide, roll, or twist off its seat. As has been observed in post-disaster field assessments (see, for example, High River and Slave Lake case studies), buildings with ends of sill plates inadequately anchored have shown early failure at those points, resulting in full-wall loss or significant displacement.

Where bolts are placed too near the end grain, instantaneous failures may occur under sudden loading: the wood splits, rendering the bolt ineffective. Conversely, if too far from the end, uplift or lateral forces may pry up the free tail of the plate, unzipping the connection and transferring those forces unpredictably to vertical hold-downs or crippling adjacent framing. In complex or staggered multifamily footprints, this disrupts compartmentalization and transfers disproportionate load into walls not designed for the event.

Design Coordination: Integrating NBC 9.23.6.4.(4) into Drawings and Schedules

Proper anchor-bolt layout begins at the design table. Stamped drawings should show sill anchor positions as both interval and end conditions-detailing "end anchors: no more than 305 mm from end, no less than 7 diameters from end" directly on foundation plan notes. This is particularly critical where foundation steps, foundation jogs, or slab recesses dictate short sill plate runs; these conditions are common around elevator pits, entry vestibules, and fire hose cabinet returns in multifamily buildings.

Coordinating with structural and civil consultants, as well as specialty framers and pour crews, reduces the likelihood of field conflicts. High-volume projects can benefit from anchor bolt templates, with color-coded or predrilled plates that enforce exact bolt location. Inconsistency at this boundary often arises from field adjustments to accommodate plumbing penetrations, access hatches, or last-minute architectural changes-each of which must be cross-checked for code compliance at the affected sills.

Inspection Practices and Red Flags: What Experienced Inspectors Seek

Municipal building inspectors and third-party quality assurance personnel make it routine to physically measure anchor bolt locations at ends of sill plates prior to covering up with subfloor or finishes. Of note in Alberta, inspectors equip themselves with calipers or ruled tapes marked for both the 305 mm maximum and the bolt-diameter-specific minimum.

• They check each visible corner, jog, and plate end for absence of anchors outside the 12-inch zone.
• They confirm that spacing from the absolute end-measured to the bolt’s centerline-is no less than, for example, 89 mm (3.5 inches) for 1/2-inch diameter.
• An overhanging sill or one trimmed to accommodate a change in foundation direction is a signal to check for both the presence and position of the bolt.
• Loose, oversized, or sloped anchor holes, or visible plate checks near the bolt, trigger additional scrutiny.

Digital field inspection software now increasingly mandates photo documentation by position, a trend that supports record-keeping and due diligence. Inspection failures in this domain trigger costly rework: removal and reinstallation of sills, epoxy-reinforced anchor doweling, or even foundation patches to introduce code-compliant hold-downs.

Advanced Structural Detailing for Multifamily: Common Field Complications and NBC Compliance

Short Sill Plates and Narrow Wall Segments

In wall returns of less than 600 mm (24 inches)-adjacent to elevator pits, stair core landings, or mechanical shafts-conflicts between anchor bolt maximum and minimum spacings are common. For a 406 mm (16 inch) plate segment, for example, the designer must position each anchor not more than 305 mm (12 inches) from each end, but not less than 89 mm (3.5 inches) from each end (for 1/2-inch bolts). This narrows the window for bolt installation to as little as 127 mm (5 inches), often requiring detailed shop drawings and specialty concrete anchor solutions.

Where the prescribed minimum distance cannot be physically achieved due to spatial constraints, alternative proprietary anchors, steel straps, or engineered hardware may be specified. Such cases warrant timely engagement with structural engineers for immediate solutions and prior field approval.

Foundation Steps, Grade Beams, and Slab Perimeters

Foundation steps-integral to frost-wall or partial-basement foundations in Alberta-interrupt continuous anchor bolt runs. Where sill plates are trimmed to follow stepped concrete, each step creates a fresh plate end with its own NBC-compliance requirements for anchorage. Neglecting step corner ends allows the plate (and wall above) to rotate or slide upon the stepped foundation, especially in areas subjected to saturated soils or ice lensing, which are common challenges in many Calgary developments.

Grade beam and slab edges present additional complexity. The interplay between perimeter insulation, vapor barrier laps, and bolt embedment depth must not result in anchor/bolt assemblies being displaced out of code-compliant window. Shop layout templates should be double-checked against as-built foundation geometry before the pour, ensuring no field corrections place anchors out of tolerance.

Retrofit, Repairs, and Additions: The NBC in Existing Structures

When retrofitting multifamily basements or reconfiguring ground floors for amenities or upgraded fire zones, existing sill plate anchorage may not meet modern NBC 9.23.6.4.(4). In such cases, assessment of minimum and maximum distances should occur prior to framing. If anchor positions do not conform, structural adhesive or mechanical post-installed anchors (epoxy-set bolts, expansion anchors with large washers, or Simpson Strong-Tie hold-down brackets) may be required. These retrofits must achieve both the specified edge distance and minimum embedment for full shear/ uplift resistance, or else risk limited upgrade efficacy.

For legal suites, secondary egress installations, or modified demising walls in existing multifamily towers, failure to address code updates can ultimately lead to denied occupancy or insurance claims refusal when post-incident investigations reveal deficiencies around sill end anchorage.

Performance Under Load: Engineering Rationale for Spacing Rules

The NBC’s dimensioning of sill plate end anchors arises from rigorous laboratory and field-testing of Canadian softwoods' behavior under load. When bolts are set too near the plate ends, the splitting along the grain-particularly in fast-grown SPF or when kiln-dried material rapidly equilibrates to basement humidity-results in a catastrophic loss of connection performance. Seven times the nominal diameter is a well-established rule of thumb from the Canadian Wood Council, reflecting both historic and contemporary test data on withdrawal and slip failure modes.

Conversely, setting the bolt too far from the end underutilizes the anchor’s shear resistance at the critical interface; this can allow end-of-wall uplift, local racking, or even entire diaphragm corners to lift or slip in severe wind events. Diaphragm and boundary chord theory presumes positive tie-back within that first 305 mm. Site wind loading in Calgary and Edmonton, where codified wind speeds are among the nation’s highest, renders any deviation from the maximum spacing at ends an avoidable risk.

Coordination With Other Structural Hardware: Holddowns, Straps, and Shearwall Interfaces

It is common in mid-rise or high-density multifamily projects to see holddown anchors, tie rods, or steel straps placed adjacent to or superimposed with code-required anchor bolts at sill ends. Coordination of these hardware assemblies must maintain the sill bolt’s minimum and maximum end distances, and also avoid conflicts with large-diameter holddown bolts (often 5/8-inch or greater).

• Where hold-downs are specified within 100 mm of foundation corners, the anchor bolt must still comply with the seven-diameter rule-a recurring source of field nonconformity.
• Double checking layout of all embedded items before pour is essential, especially where slab or wall-mounted mechanical penetrations, rebar congestion, or insulation blockouts cross within the end bay of the wall.
• Sequencing the pour and setting, as well as comprehensively mapping anchor positions, can prevent late-stage conflicts where a last-minute field change would either reduce compliance or force costly remediation.

Practical Strategies: Achieving Precision Bolt Placement in the Field

Field-proven methods for reliable bolt placement include the use of predrilled or slotted sill plates, aligning with pre-pour anchor-bolt stencils cut to project-specific requirements. Use of commercial bolt-position templates, often laser-etched and reusable, ensures bolts are accurately located and perpendicular, reducing labor errors.

In high-production environments, the practice of inserting bolts during form stripping, using jigged location arms fastened to the formwork, is standard. Care should be taken that the concrete achieves sufficient set before hole placement; loose bolts set in green or plastic concrete often shift during curing, putting their as-cast location out of tolerance.

On multifamily projects with large cast-in-place piers or grade beam intersections, precise survey layout and field-verification of bolt sleeves is advocated, especially around tight corners and at the ends of odd-sized plates where NBC 9.23.6.4.(4) margins are smallest. Diligent communication between pour lead, site foreman, and framing lead is required.

Documentation and Quality Control: Ensuring Long-term Compliance and Traceability

Construction documentation should include anchor bolt layouts with explicit end distance call-outs. As-built drawings should record each anchor position, especially at sill ends, accompanied by timestamped photographic evidence wherever possible. Not only does this enable quick third-party verification, but it provides an invaluable record for future renovations, maintenance, and warranty claims.

Quality control checklists should require dual-verification from both forming and framing crews for the end locations of every bolt, particularly after formwork removal but prior to backfilling or subfloor installation. Digital QA/QC apps now streamline this process, with cloud logging of anchor coordinates, embedment depth, and washer/ nut details. Flagging any bolt outside code-mandated windows for root-cause analysis and immediate correction is crucial to avoid compounding risk deep into the building lifecycle.

Risk Management: Insurance, Warranty, and Occupancy Implications

Insurance providers and new home warranty programs in Alberta increasingly demand confirmation of code-compliant anchorage at plate ends, especially for large-scale multifamily projects. In catastrophic failure claims, adjusters scrutinize anchor locations adjacent to exposed plate ends, first floors above parkades, and any interface with slab isolation joints. Non-compliance is grounds for voided claims and nonrenewal of coverage.

For developers and asset managers, the risk accumulates over the lifecycle of multi-phase projects: missed details in early blocks or phases can echo as claims and repairs in occupied units. When property managers request upgrades or reconfiguration at foundation-connected demising walls, previously missed code violations create added cost and complexity.

Regulatory and Site Audit Trends: What’s on the Horizon for Alberta Enforcement

Municipal enforcement efforts in Alberta signal a tightening focus on as-built foundation-to-wall connections. Expect increased field review of anchor positions at critical endpoints-especially where task separation between pour and framing crews introduces risk of error. The move toward digital permitting and photo-driven inspection requires builders to preemptively document compliance, and engineers of record to sign off on end anchorage as part of final occupancy documentation.

Proposals to standardize additional reinforcement or plate-end hardware in high-exposure zones are already tabled in several municipalities. The recent uptick in performance criteria for post-installed anchors in retrofits similarly hints at a more prescriptive compliance environment, particularly where fire, wind, or seismic hazard overlays are present.

Value Engineering and Constructability: Balancing Code, Cost, and Practicality

Seemingly marginal adjustments-such as switching from 1/2-inch to 5/8-inch diameter bolts-influence not only cost, but critically, minimum and maximum code distances at plate ends. Larger-diameter bolts push the minimum permissible distance further from the end, squeezing available lengths in short-jog or segmented walls. Value engineering exercises must therefore account for trade-offs: hardware costs, labor, and, above all, the practical difficulty of code-compliant placement at every segment end.

Early-stage constructability review, including mockups or pilot runs for bolt setting, pre-empts serial errors on production floors. Where infeasible, collaborative discussion with code officials and the structural engineer can allow for alternative details-supplemental straps, split plates, or engineered connectors that match code intent, if not literal text. Getting ahead of these details saves weeks of rework and, ultimately, risk to the end product’s reputation and service life.

Summary of Critical Takeaways

• NBC 9.23.6.4.(4) unequivocally requires anchor bolts to be set not more than 305 mm (12 inches) and not less than seven bolt diameters from the end of every sill plate.
• For standard 1/2-inch bolts, this means a 3.5-inch (89 mm) minimum; for larger bolts, this threshold increases.
• Deviations risk both dramatic structural failures and non-compliance penalties, with insurance and occupancy consequences.
• Integration of code distances into foundation drawings, QA practices, and cross-team coordination is essential for lasting resilience.
• Advanced multifamily projects must anticipate and address conflicts at plate ends-especially where steps, jogs, or short sleeves dominate the ground floor geometry.
• New digital tools and heightened inspection standards in Alberta make diligent compliance more trackable, but also less forgiving of oversight.
